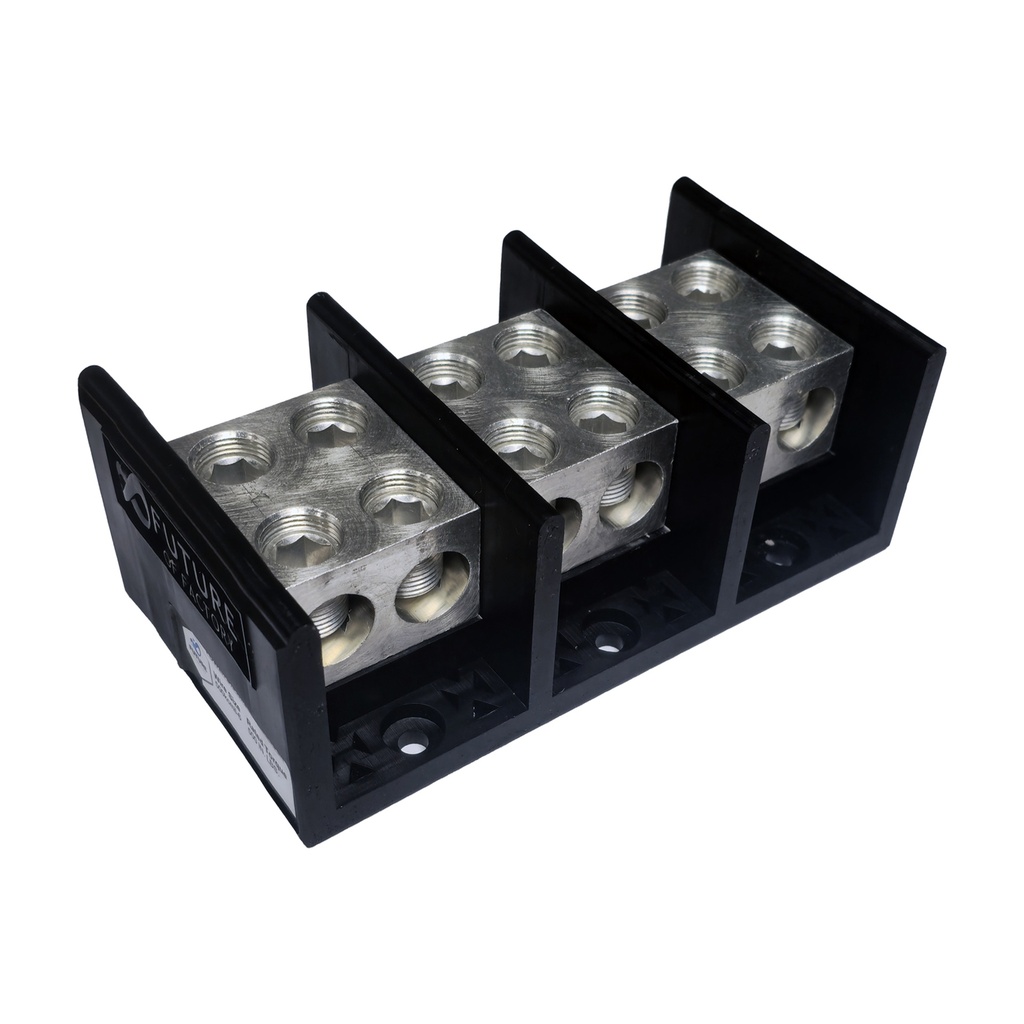

FOF-2P500-3 Three Phase Power Distribution / Terminal Block

Introducing the FOF-2P500-3 Three Phase Power Distribution Block by Future Of Factory, an advanced solution for efficient and reliable power management. This versatile terminal block is designed for a wide range of applications, including grounding, power distribution, and power collection. The FOF-2P500-3 supports both aluminum and copper wires, with an input and output wire range of 500 kcmil to 6 AWG. Engineered to handle wire class B/C, this splicer-reducer features two mounting holes for secure attachment to an insulator from the bottom if needed. It also includes wire insertion "sight" holes or a wire stop hole for added flexibility. The hex socket screws ensure a reliable and secure connection. Our lugs are UL Listed and offer a voltage rating of 600 V, 2000 V, or up to 35 KV when uninsulated, making it suitable for various high-voltage applications. Manufactured in the USA strictly from domestic suppliers, the FOF-2P500-3 features a high-temperature resin insulator base and a UL94V0 flammability rating, ensuring durability and safety in extreme environments with temperatures ranging from -40°C to 125°C. The block's connectors and terminal set screws are tin-plated aluminum, and the mounting screws are steel zinc-plated, providing excellent corrosion resistance. The FOF-2P500-3 boasts a current rating of 460 A, making it a powerful choice for your power distribution needs. Designed for 3-phase applications, it accommodates two inputs and two outputs per phase. Compliant with RoHS standards, this power distribution block ensures both safety and environmental responsibility. Choose the FOF-2P500-3 by Future Of Factory for a reliable and high-performance power distribution solution. Future Of Factory stands for innovation and quality in power management products.
