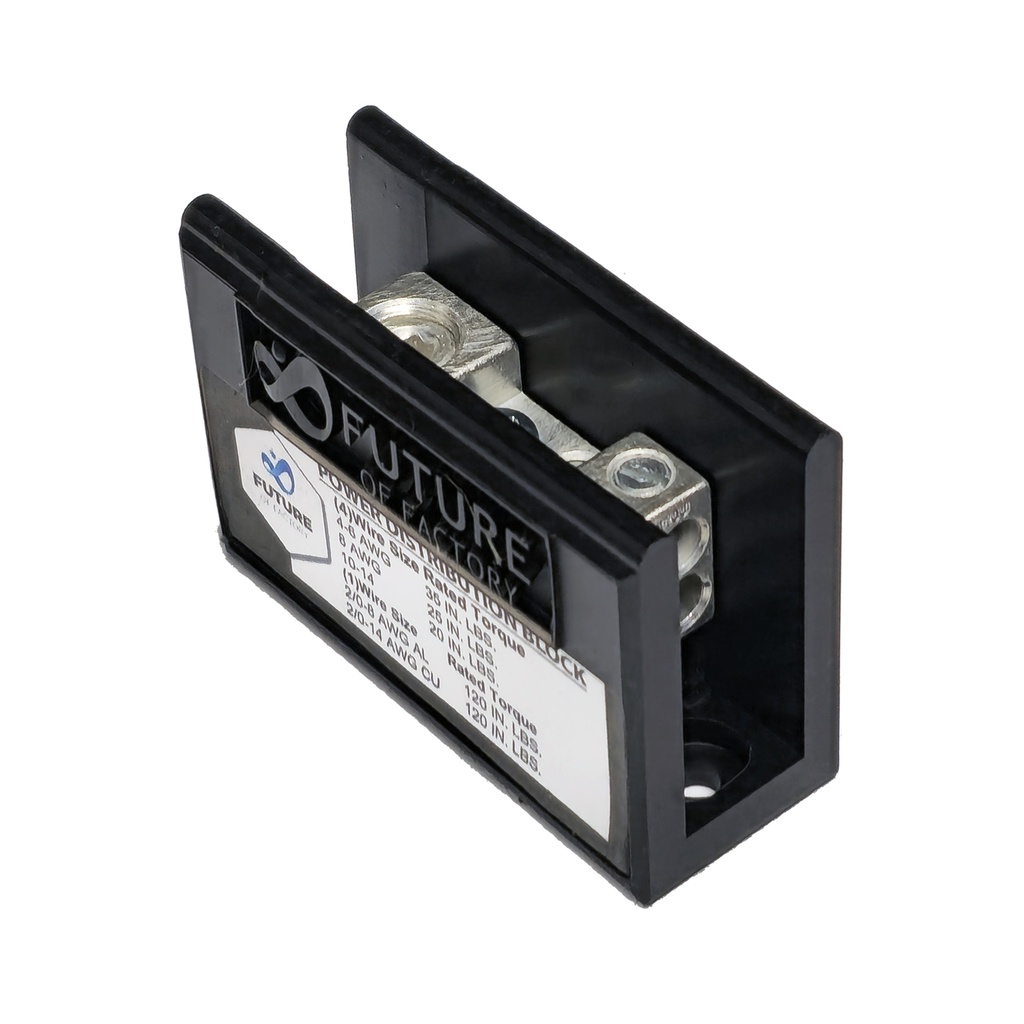

FOF-7006-1 Single Phase Power Distribution / Terminal Block

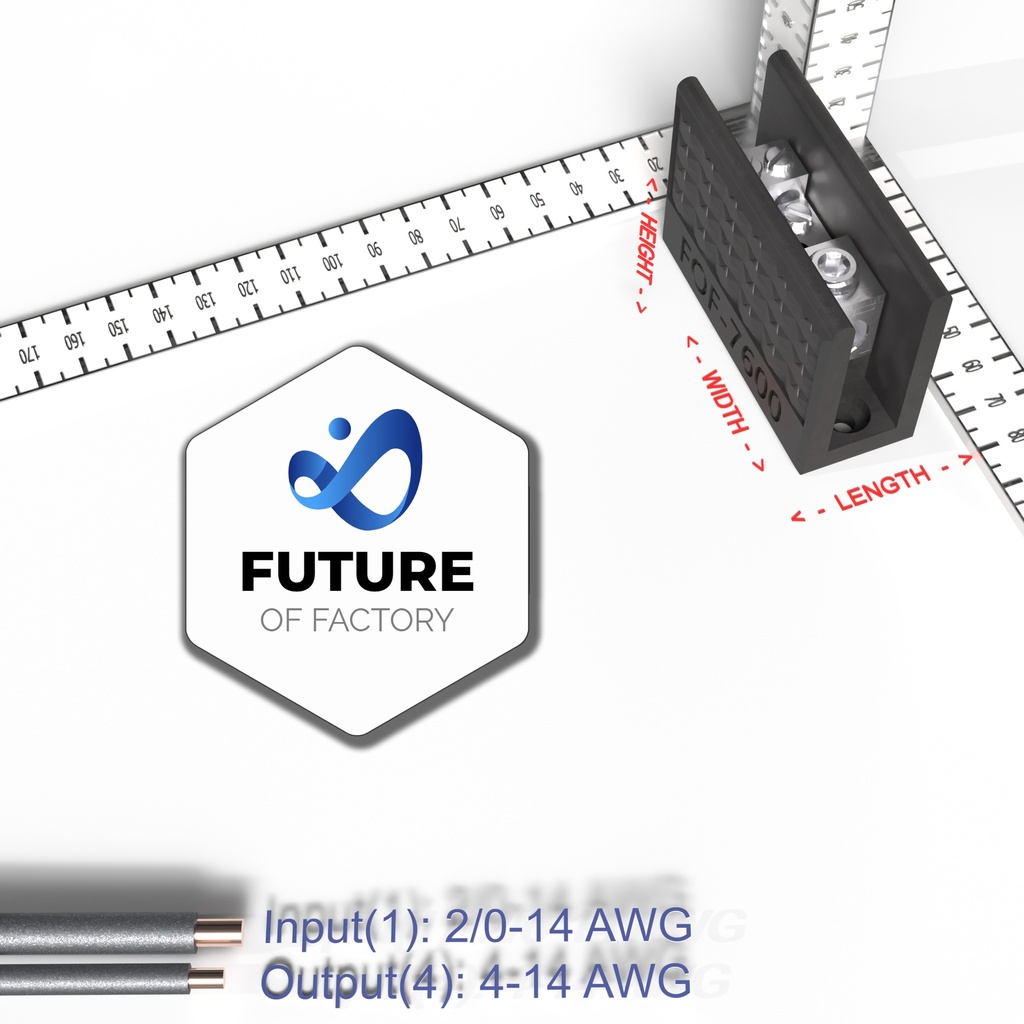

Introducing the FOF-7006-1 Single Phase Power Distribution / Terminal Block by Future Of Factory, a top-tier solution for efficient power management. This versatile and robust distribution block is designed to ensure optimal performance in various applications, including grounding, power distribution, and power collection. The FOF-7006-1 supports both aluminum and copper wires, with an input wire range of 2/0-14 AWG and an output wire range of 4-14 AWG. Its stacker-type, two-tier lug design allows for flexible and easy installation. Our lugs are UL Recognized for 600V applications and acceptable for use up to 2000V, ensuring safety and reliability under high-voltage conditions. Made in the USA strictly from domestic suppliers, the FOF-7006-1 features a high-temperature resin insulator base and a UL94V0 flammability rating, making it suitable for extreme environments with temperatures ranging from -40°C to 125°C. The block's connectors and terminal set screws are tin-plated aluminum, and the mounting screws are steel zinc-plated, providing durability and corrosion resistance. The FOF-7006-1 boasts a current rating of 175A and a voltage rating of up to 2000V. It is designed to accommodate one input per phase and four outputs per phase, making it an excellent choice for various power distribution applications. Compliant with RoHS standards and comparable to Marathon Special Products Part Number 1321570, the FOF-7006-1 is the ultimate choice for your power distribution needs. Choose Future Of Factory for innovation and quality.
