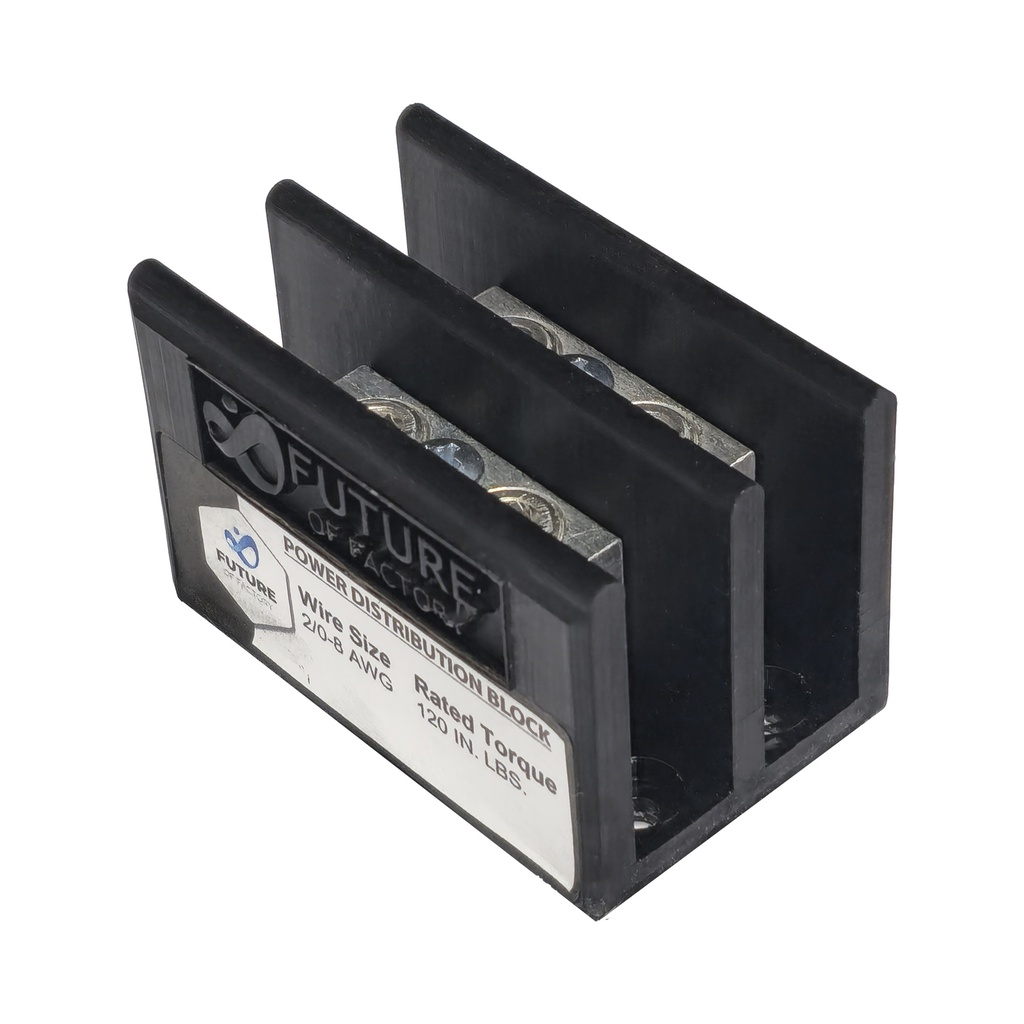

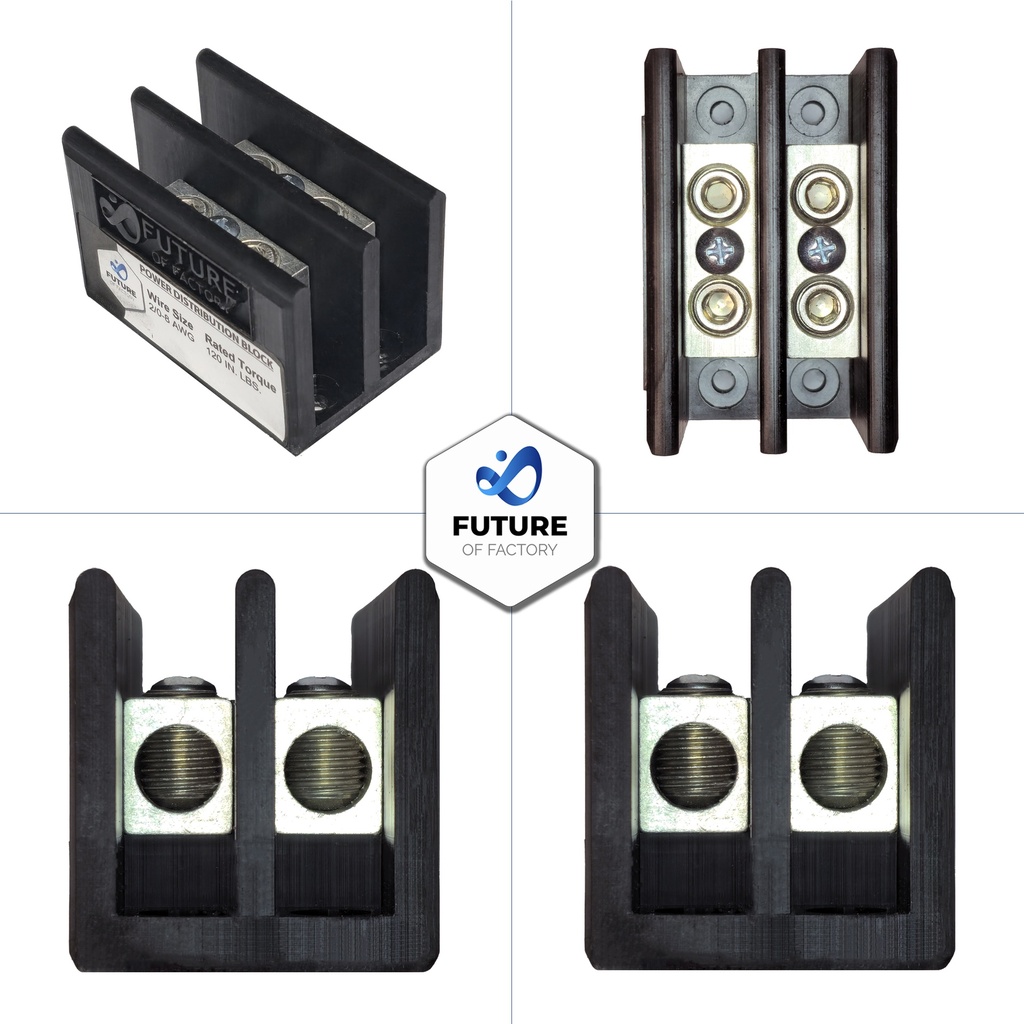

FOF-P2-0-2 Two Phase Power Distribution / Terminal Block

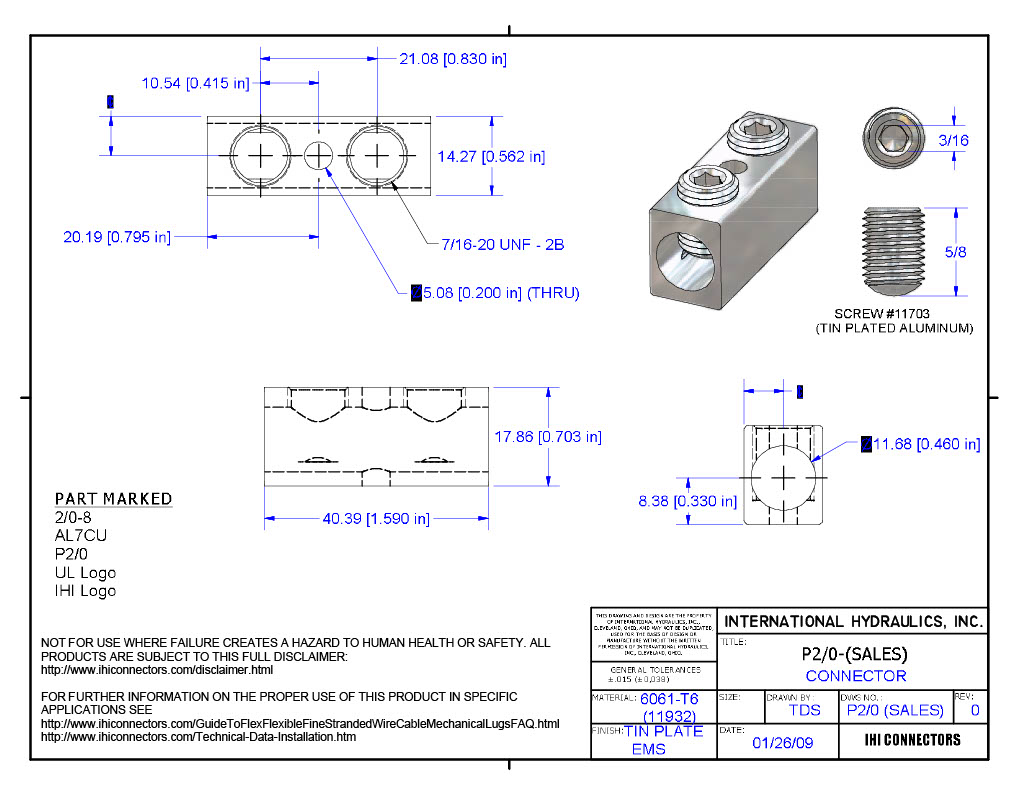

Introducing the FOF-P2-0-2 Two Phase Power Distribution Block by Future Of Factory, a premier solution designed for efficient and reliable power management. This versatile terminal block is ideal for a wide range of applications, including grounding, power distribution, and power collection. The FOF-P2-0-2 supports both aluminum and copper wires, with an input and output wire range of 2/0 to 8 AWG. This splicer-reducer features a single #10 bolt clearance mounting hole, a wire insertion "sight" hole, or a wire stop hole, offering flexibility and ease of installation. The hex socket screws ensure a secure connection. Our lugs are UL Listed and offer a voltage rating of 600 V, 2000 V, or up to 35 KV when uninsulated, making it suitable for various high-voltage applications. Manufactured in the USA strictly from domestic suppliers, the FOF-P2-0-2 features a high-temperature resin insulator base and a UL94V0 flammability rating, ensuring durability and safety in extreme environments with temperatures ranging from -40°C to 125°C. The block's connectors and terminal set screws are tin-plated aluminum, and the mounting screws are steel zinc-plated, providing excellent corrosion resistance. The FOF-P2-0-2 boasts a current rating of 460 A, making it a powerful choice for your power distribution needs. Designed for 2-phase applications, it accommodates one input and one output per phase. Compliant with RoHS standards, this power distribution block ensures both safety and environmental responsibility. Choose the FOF-P2-0-2 by Future Of Factory for a reliable and high-performance power distribution solution. Future Of Factory stands for innovation and quality in power management products.
Specifications
| Current Rating (AC) | 460 A |
| Total Phases | 2 |
| Number of Inputs per Pole | 1 |
| Number of Outputs per Pole | 1 |

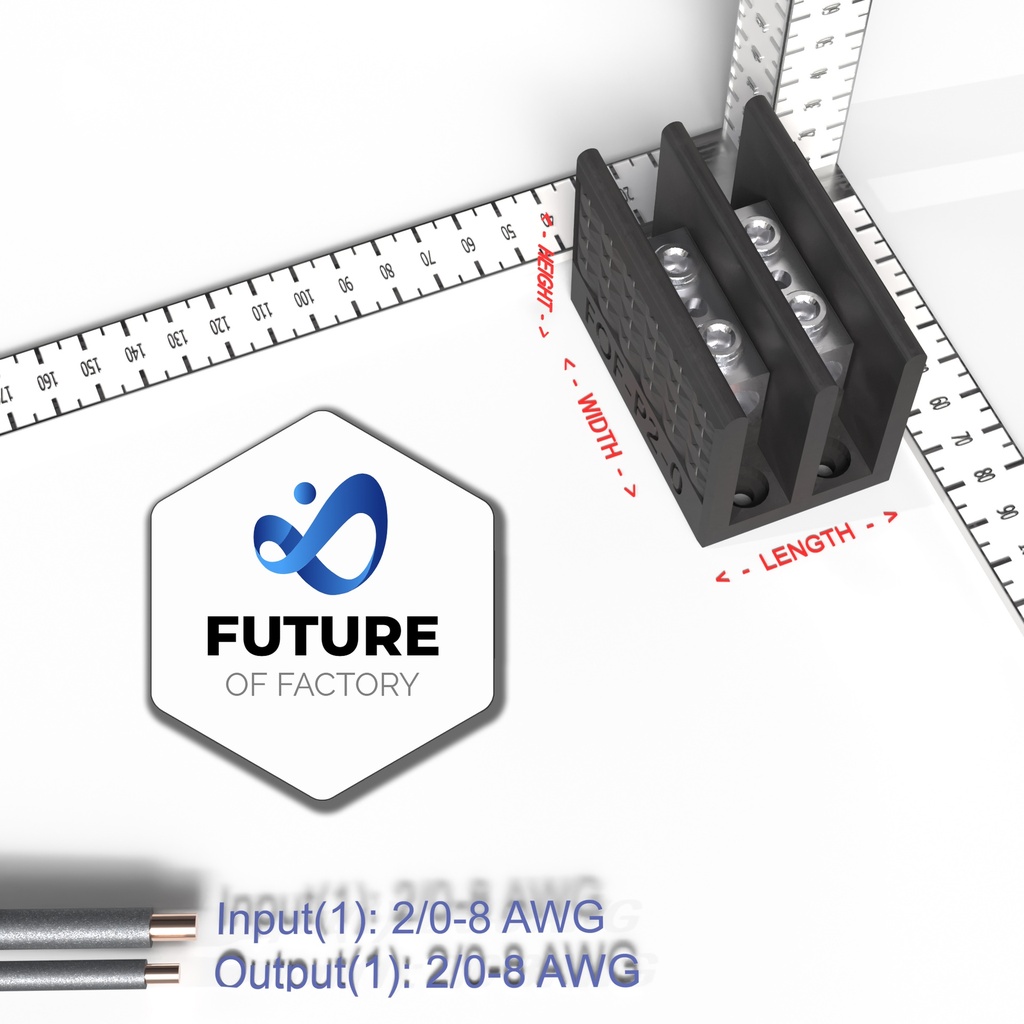

| Input Wire Range | 2/0 - 8 AWG |
| Output Wire Range | 2/0 - 8 AWG |
| Material Info Insulator Base | High Temp Resin |
| Lug Rating | AL7CU |
| Block Flammability Rating | UL94V0 |
